Waltham Forest architectural drawings
Plans for extensions, lofts and conversions in Waltham Forest
Local London designers • Fixed fee guaranteed • Council-ready drawings
We regularly work across Waltham Forest including Walthamstow, Leyton, Leytonstone, Chingford and Highams Park, helping homeowners extend, convert lofts and improve layouts with clear planning and technical drawings.

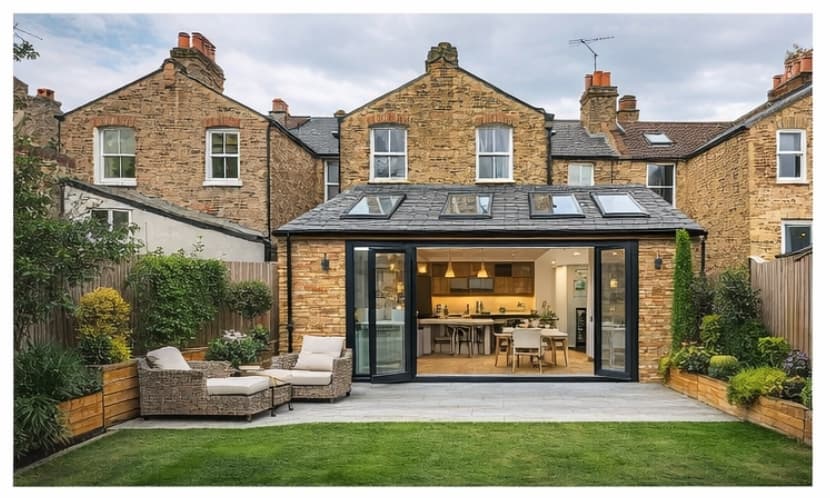

Typical Waltham Forest homes include Victorian and Edwardian terraces where rear and side return extensions are popular, plus loft dormers and internal remodelling where the roof form and planning context allow.
- • Rear and side return extensions for terraces and family homes
- • Loft conversions including dormers and hip to gable where suitable
- • Flat reconfigurations, refurbishments and internal remodelling
- • Planning drawings and building regulation packs
- • Covering Walthamstow, Leyton, Leytonstone, Chingford and more
- • Initial survey within 48 hours where required
Local focus
We create clear drawing packs that help approvals move smoothly and give builders clear information to price and build.
Share your postcode and a short description. We reply with a fixed fee and clear next steps.
Free fixed fee quote
Tell us what you want to build and we will respond with the best route and a fixed fee.
Fast contact
Popular services in Waltham Forest
We provide full design and planning services for extensions, loft conversions and new build developments. Each service page explains what is included, how approvals work, and how to get a fixed quote.
Nearby borough pages
These are the boroughs that directly border Waltham Forest. If your property is close to the boundary, these local pages may also be relevant for your project.
Other London areas we also cover
These pages cover other parts of London that may still be useful if you are comparing services, moving area, or looking at similar project types elsewhere.
Architectural drawing services in Waltham Forest
We produce planning and technical drawing packages for extensions, loft conversions, internal reconfiguration, refurbishments and conversion layouts across Waltham Forest.
Common work includes open plan kitchen extensions, dormer lofts, side extensions, structural openings, and building regulation packs coordinated with structural design.
Clear drawings builders can price from
Floor plans, elevations and sections set out clearly, with notes that help Building Control and contractors understand the scope fast.
Waltham Forest coverage and service focus
WEDRAWPLANS support homeowners across Waltham Forest with extension plans, loft conversion drawings, planning submissions and building regulation packages.
Areas we cover in Waltham Forest
We cover Waltham Forest and surrounding residential streets, including:
- Walthamstow
- Leyton
- Leytonstone
- Wood Street
- Blackhorse Road
- Whipps Cross borders
- Chingford
- Highams Park
- Upper Walthamstow
- South Woodford borders
- Snaresbrook borders
- Nearby residential streets
Popular project types
- Rear and side return extensions
- Wrap around and L shaped extensions
- Loft conversions and dormers
- Hip to gable loft changes
- Internal remodelling and knock throughs
- Flat layout reconfigurations
- Garden studios and outbuildings
- Refurbishments and layout upgrades
- Change of use layouts
- Small infill schemes
Permitted development limits in Waltham Forest
This is a simplified guide to common permitted development limits. Final confirmation depends on your house type, location, conservation constraints, Article 4 directions and any previous planning restrictions.
Rear extensions
- Up to 3 m deep on terrace houses
- Up to 4 m on semi detached houses
- Up to 6 to 8 m with Prior Approval
- Maximum 4 m high for single storey
Loft conversions
- Up to 40 to 50 cubic metres volume
- No extensions on the front roof slope
- Side windows obscure glazed and fixed
- External materials to be similar
Outbuildings
- Maximum 2.5 m high near boundaries
- Cannot be used as a separate dwelling
- Use must be incidental to the house
- Not more than 50 percent of garden area
Planning drawings for Waltham Forest
- Existing and proposed floor plans
- Existing and proposed elevations
- Roof plans and key sections
- Block plans and location plans
- Drainage and construction notes
- Design and access or heritage statements where needed
Building regulation drawings for Waltham Forest
- Structural layouts and coordination
- Foundation and beam information
- Fire safety and escape routes
- Thermal build ups and insulation specs
- Ventilation and extract positions
- Drainage runs and manhole information
Local planning knowledge for Waltham Forest projects
Waltham Forest includes conservation areas, strong Victorian and Edwardian streets, family housing and rooflines where design quality matters. We shape each scheme to fit local context so approval chances are as strong as possible.
Frequently asked questions
Do I need planning permission for a rear extension in Waltham Forest
Not always. Many rear extensions in Waltham Forest can be carried out under permitted development, but some homes are affected by conservation area controls, flat status, local constraints or previous planning conditions. We review the address and advise the right route.
Is Waltham Forest strict with loft conversions and extensions
Waltham Forest can be more sensitive in conservation areas, on strong character streets and where roof alterations affect the front street scene. Clear drawings and a well-shaped planning proposal are important.
How long does Waltham Forest Council take to decide
Householder planning applications usually take around eight weeks after validation. Lawful Development Certificates are often around six to eight weeks, subject to workload and validation.
Do you manage the full application to Waltham Forest Council
Yes. We prepare the drawings, complete the forms, upload the documents, submit the application to Waltham Forest Council and respond to planning queries during the process.
Prefer to speak. Call 020 3654 8508
Ready to start your project
Send your postcode and a short description. We reply with a fixed fee and recommended next steps.
